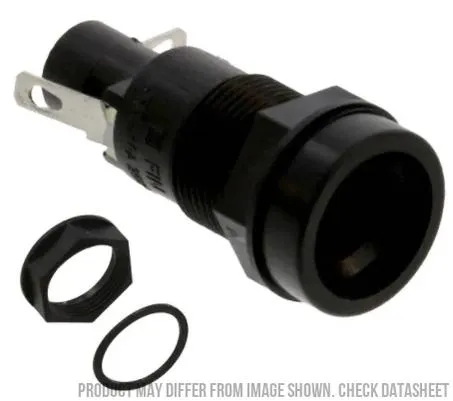

Schurter 0031.1353, Fuseholder, 5 x 20 mm, Slotted Cap, 4 W / 16 A, IP 67
Features
- Fuseholder with high rated power acceptance - Panel thikness up to 10mm
- High breaking capacity of 20 kA @ 1000 VDC
- Screw type fuse carrier
Specification
| Schurter Part Number | 0031.1353 |
| Fuse Holder Size | 5 x 20mm |
| Nominal Voltage | 600VAC/DC |
| Rated Power | 4W/16 Amp @ 23°C |
| Nominal Current (AC/DC) | 16 Amp (VDE) 30 Amp (UL/CSA) |
| Tested Breaking Capacity | 20kA @1000VDC |
| Dimensions | 10.3 x 38mm |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -40°C / 85°C |
| Termination | Terminals |
| IP Protection Rating | P 67 |
| Unit Weight | 30g |
| Factory Pack Qty | 10 |
